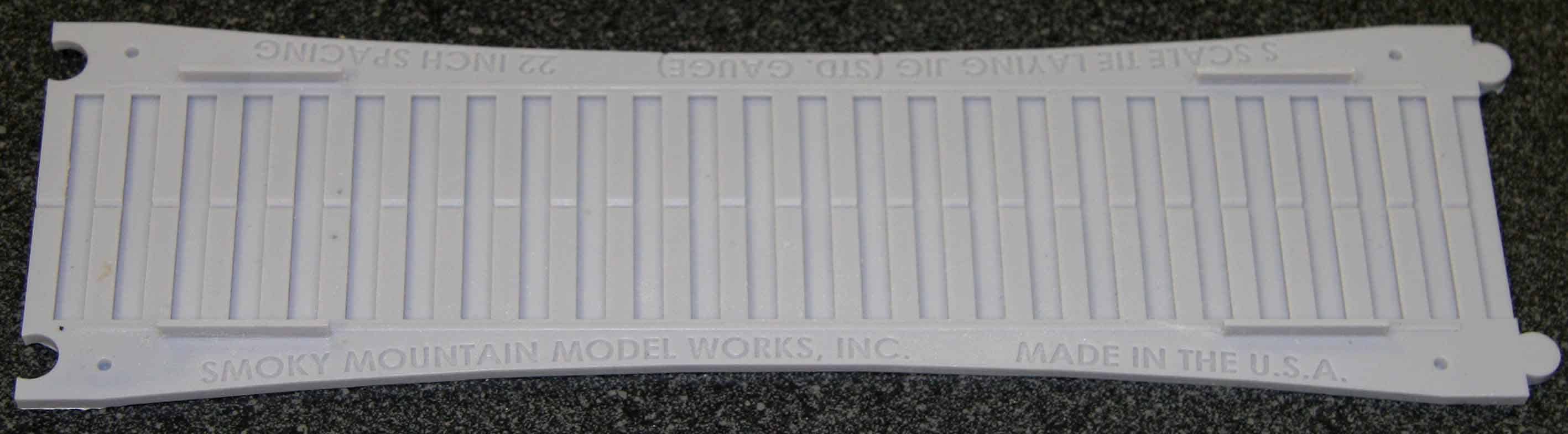

TIE JIGS - 19" and 22" spacing
64-TJ-1.1 ... Cast urethane jig w/ alignment tabs/notches to join others ... 19" spacing ... $16.00 (single)

64-TJ-1.3 ... Same as above ... $39.00 (3-pack)

64-TJ-2.1 ... Cast urethane jig w/ alignment tabs/notches to join others ... 22" spacing ... $16.00 (single)

64-TJ-2.3 ... Same as above ... $39.00 (3-pk)
Each item is designed in 3D CAD.  Urethane casting patterns are made using Rapid Prototyping technology.
S Scale Track-Related Items
Tie jigs are "built to order" and will ship within (2) weeks after receiving your paid-in-full order.

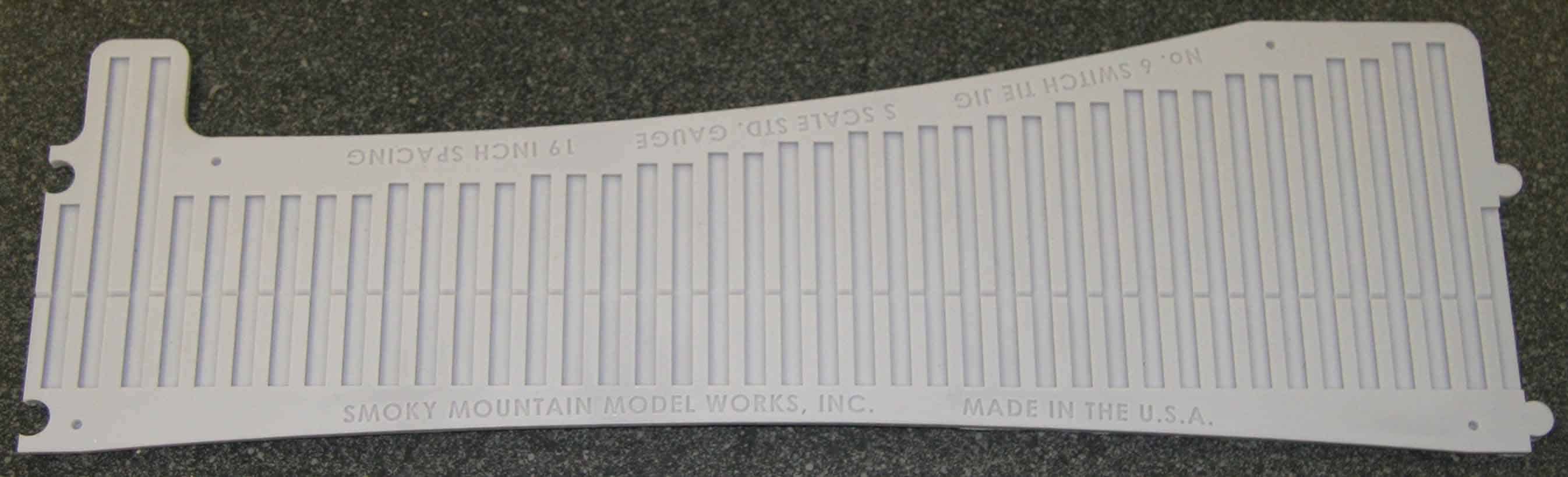

TIE JIGS - No. 5 and No. 6 switch, 19" spacing
64-TJ-3 ... No. 5 switch ... cast urethane jig w/ alignment tabs/notches to join others ... 19" spacing ... $24.00 (single)

64-TJ-4 ... No. 6 switch ... cast urethane jig w/ alignment tabs/notches to join others ... 19" spacing ... $24.00 (single)

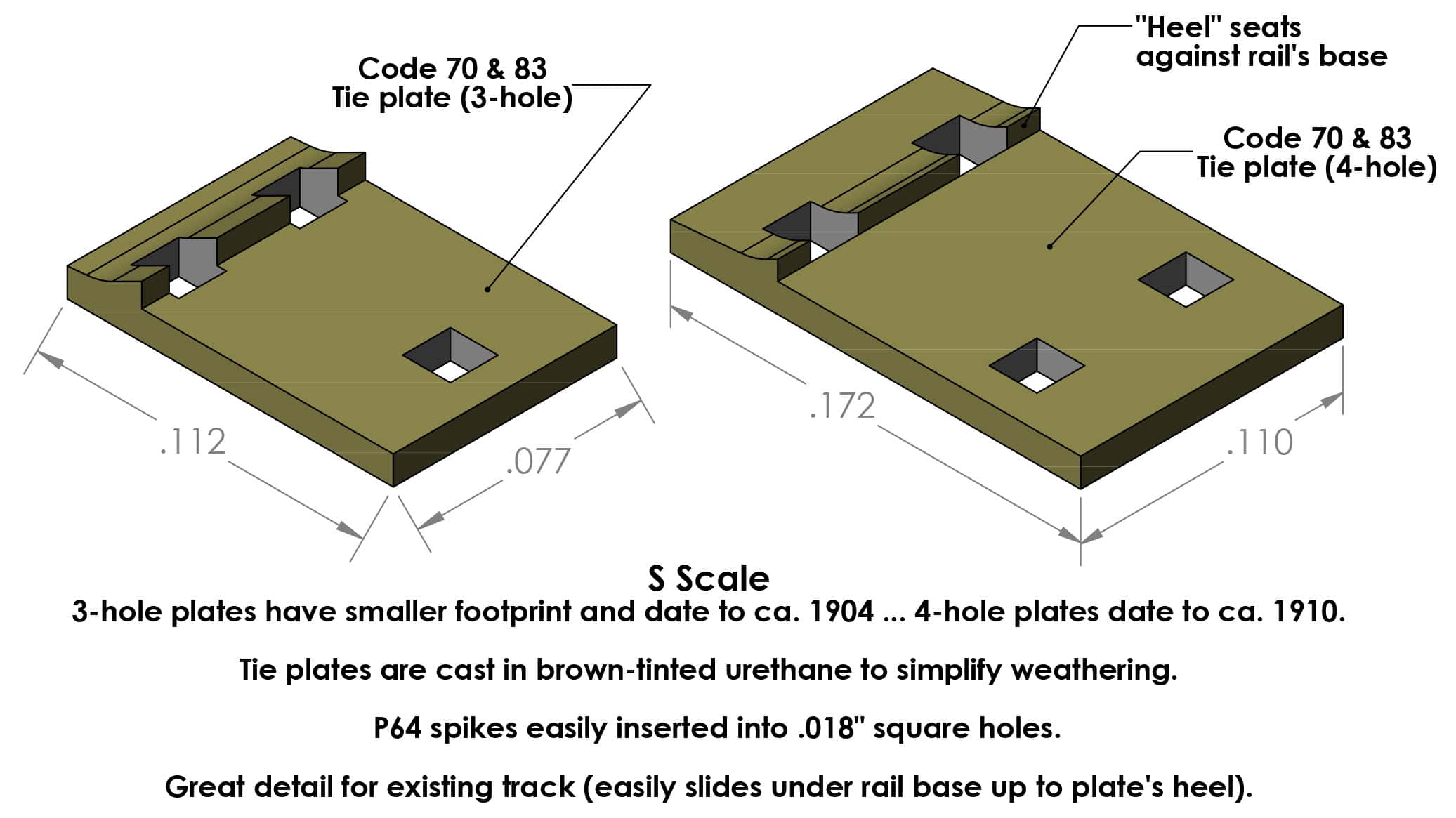

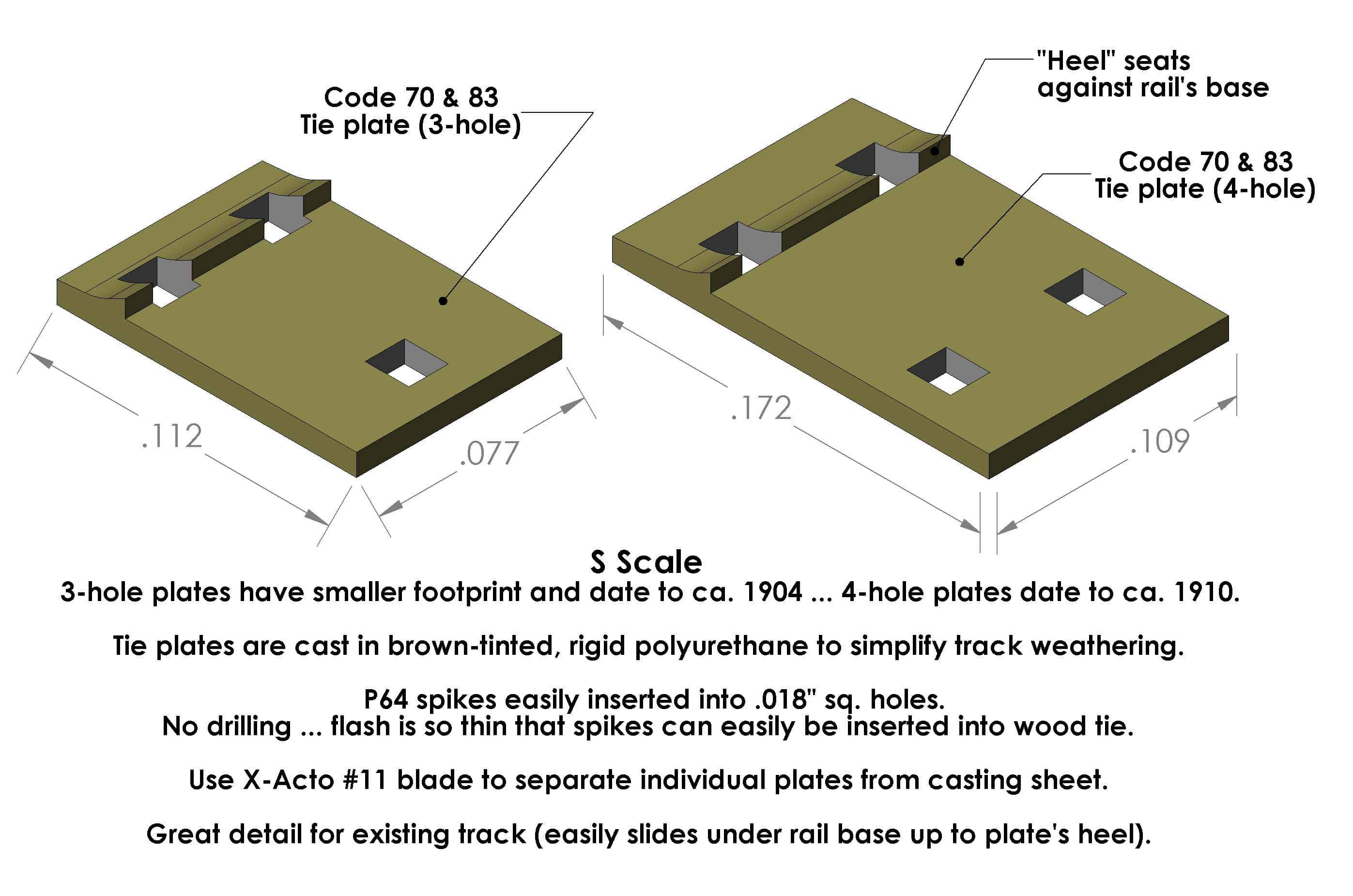

TIE PLATES (fit Micro Engineering Code 70, 83 and 100)
All parts cast in brown-tinted, semi-rigid polyurethane that grips
the spikes.

64-TD-10 ... 3-hole plate, 250 pcs. ... $8.00
64-TD-11 ... 3-hole plate, 500 pcs. ... $14.00

64-TD-15 ... 4-hole plate, 250 pcs. ... $8.00
64-TD-16 ... 4-hole plate, 500 pcs. ... $14.00

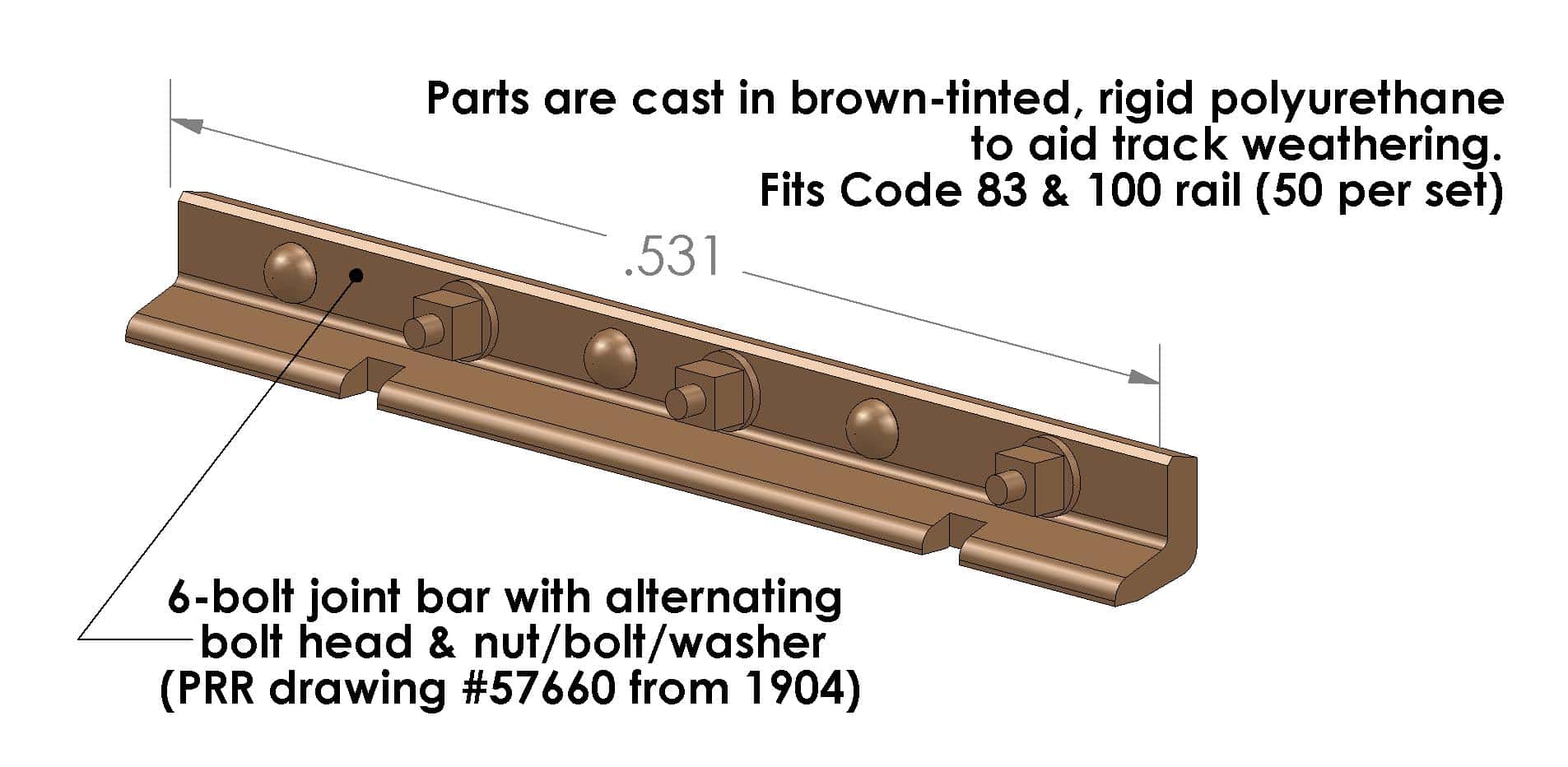

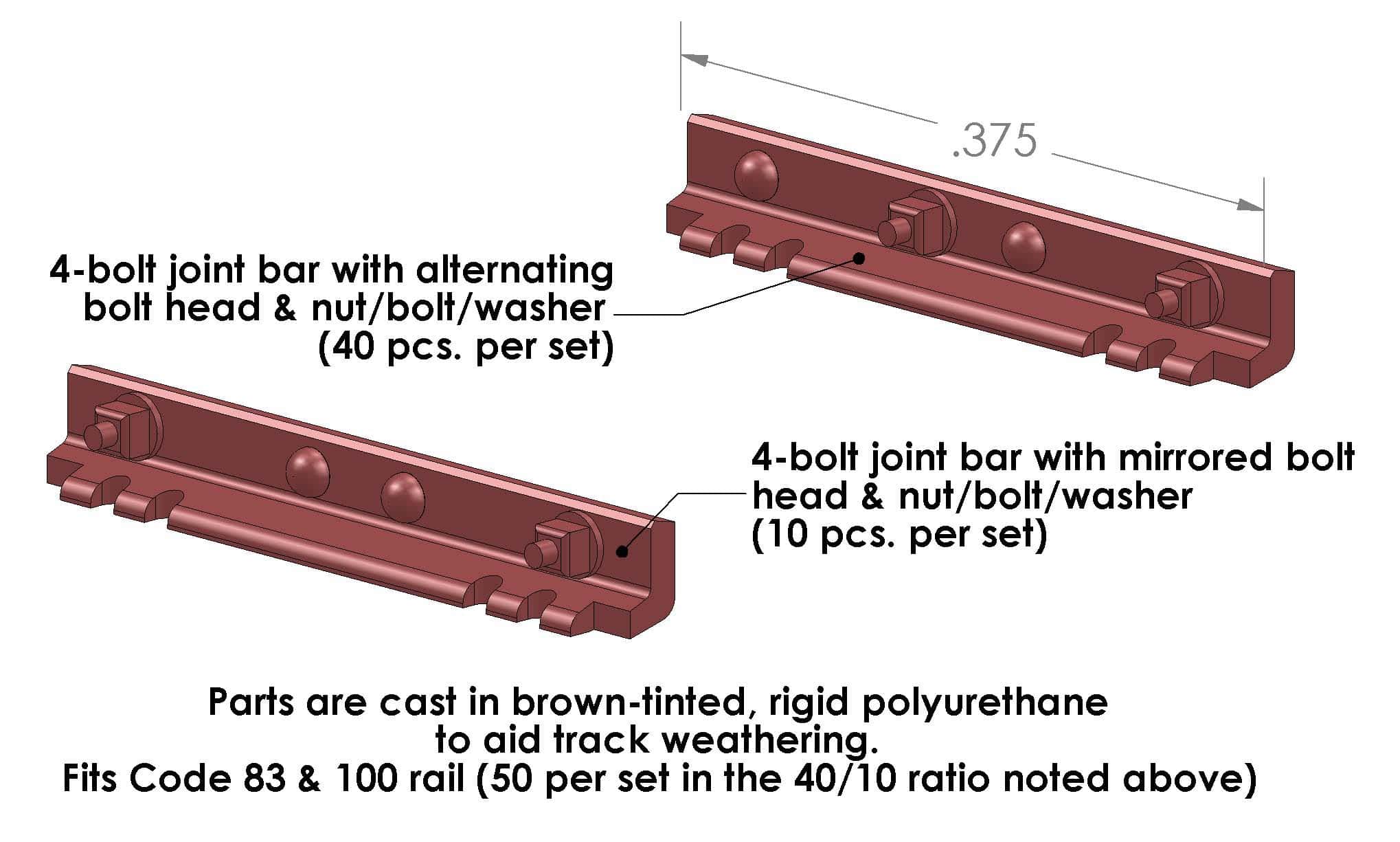

JOINT BARS (fit Micro Engineering Code 83 &100)
All parts cast in brown-tinted, rigid polyurethane.

64-TD-20 ... 4-bolt bar, 50 pcs. ... $8.00
64-TD-21 ... 4-bolt bar, 100 pcs. ... $14.00

64-TD-25 ... 6-bolt bar, 50 pcs. ... $8.00
64-TD-26 ... 6-bolt bar, 100 pcs. ... $14.00

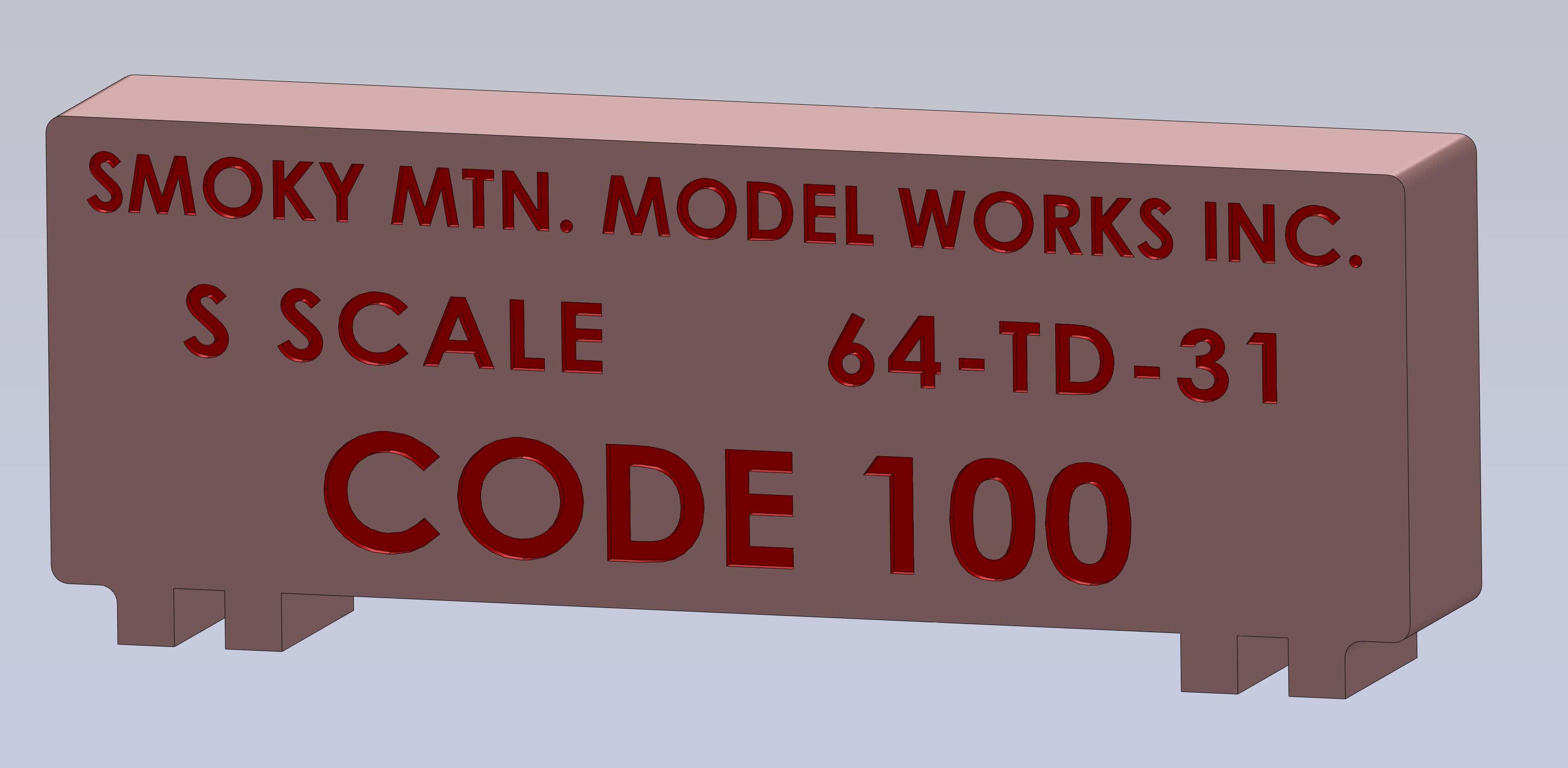

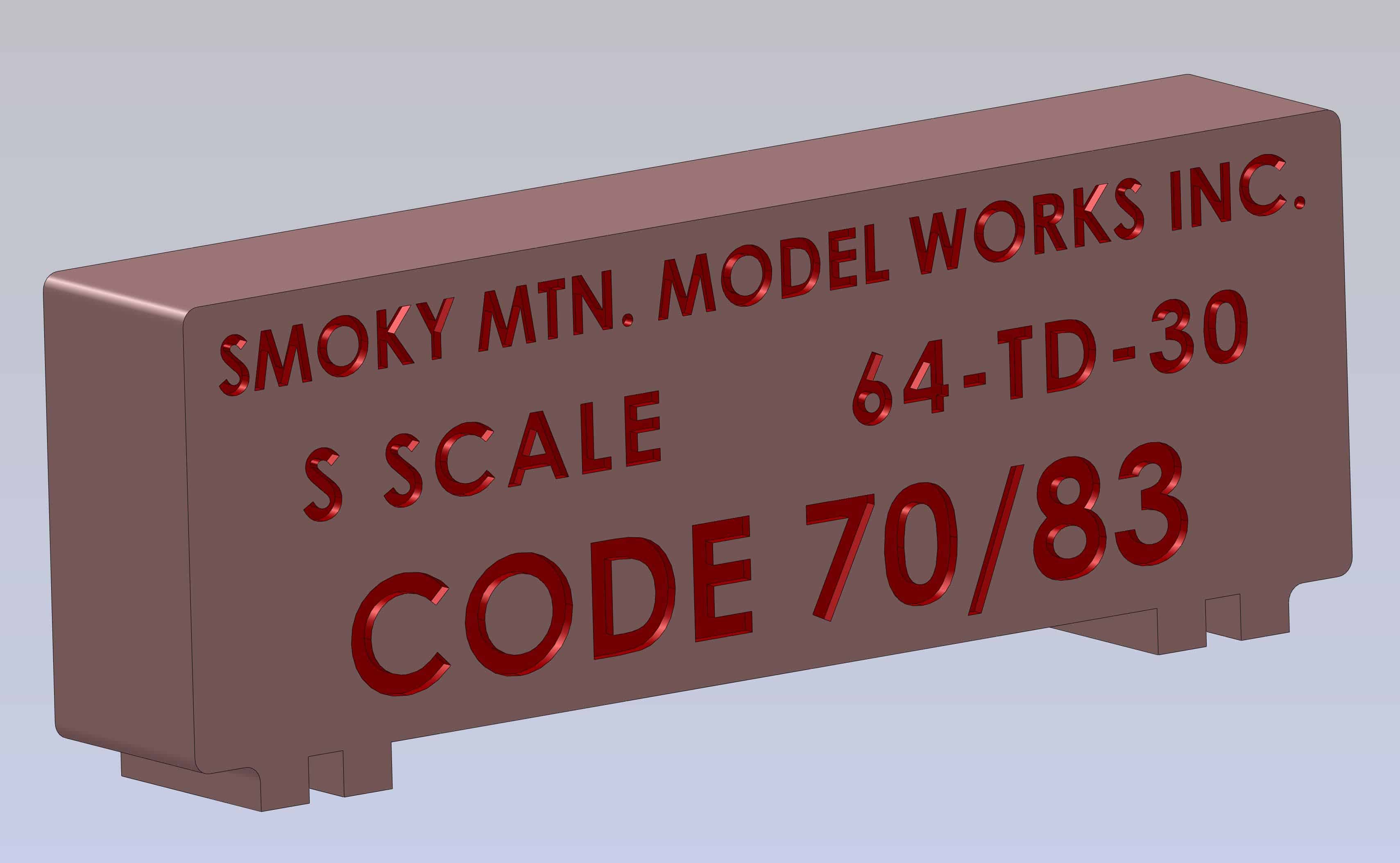

TRACK GAUGES
If you're hand-laying track, you need a gauge to suppliment the NASG stamped metal version.

These gauges are designed for code 70/83 and 100 Micro Engineering rail.  Inner "tab" also measures flangeway width of switch guardrails.

Cast in durable, grey-tinted urethane.

64-TD-30 ... Code 70/83 ... $7.00

64-TD-31 ... Code 100 ... $7.00
