TIE JIGS - 19" and 22" spacing
64-TJ-1.1 ... Cast urethane jig w/ alignment tabs/notches to join others ... 19" spacing ... $15.00 (single)

64-TJ-1.3 ... Same as above ... $35.00 (3-pack)

64-TJ-2.1 ... Cast urethane jig w/ alignment tabs/notches to join others ... 22" spacing ... $15.00 (single)

64-TJ-2.3 ... Same as above ... $35.00 (3-pk)
Each item is designed in 3D CAD.  Urethane casting patterns are made using Rapid Prototyping technology.
S Scale Track-Related Items
Tie jigs are "built to order" and will ship within a week from your order date.
TIE JIGS - No. 5 and No. 6 switch, 19" spacing
64-TJ-3 ... No. 5 switch ... cast urethane jig w/ alignment tabs/notches to join others ... 19" spacing ... $22.00 (single)

64-TJ-4 ... No. 6 switch ... cast urethane jig w/ alignment tabs/notches to join others ... 19" spacing ... $22.00 (single)

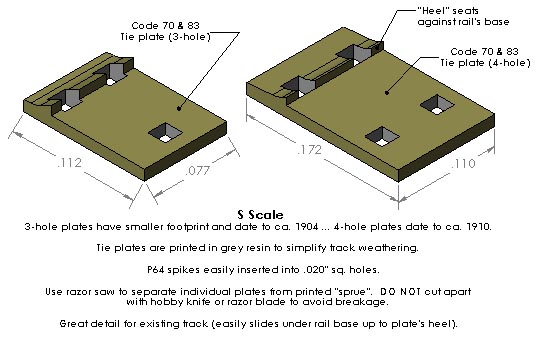

TIE PLATES (Code 70 & 83)
All parts cast in brown-tinted, rigid polyurethane to aid with track weathering.

64-TD-10 ... 3-hole plate, 250 pcs. ... $7.00
64-TD-11 ... 3-hole plate, 500 pcs. ... $13.00

64-TD-15 ... 4-hole plate, 250 pcs. ... $7.00
64-TD-16 ... 4-hole plate, 500 pcs. ... $13.00

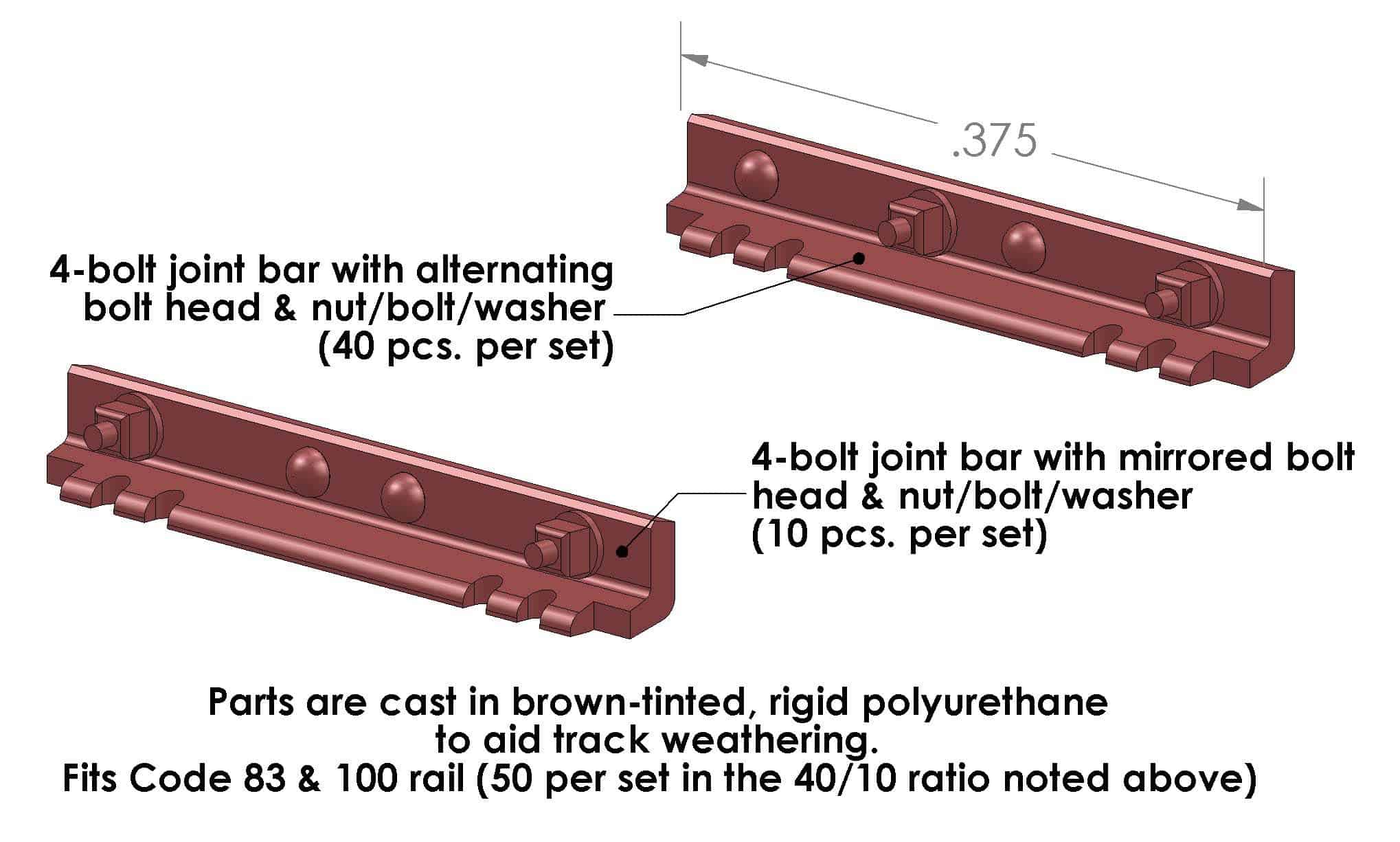

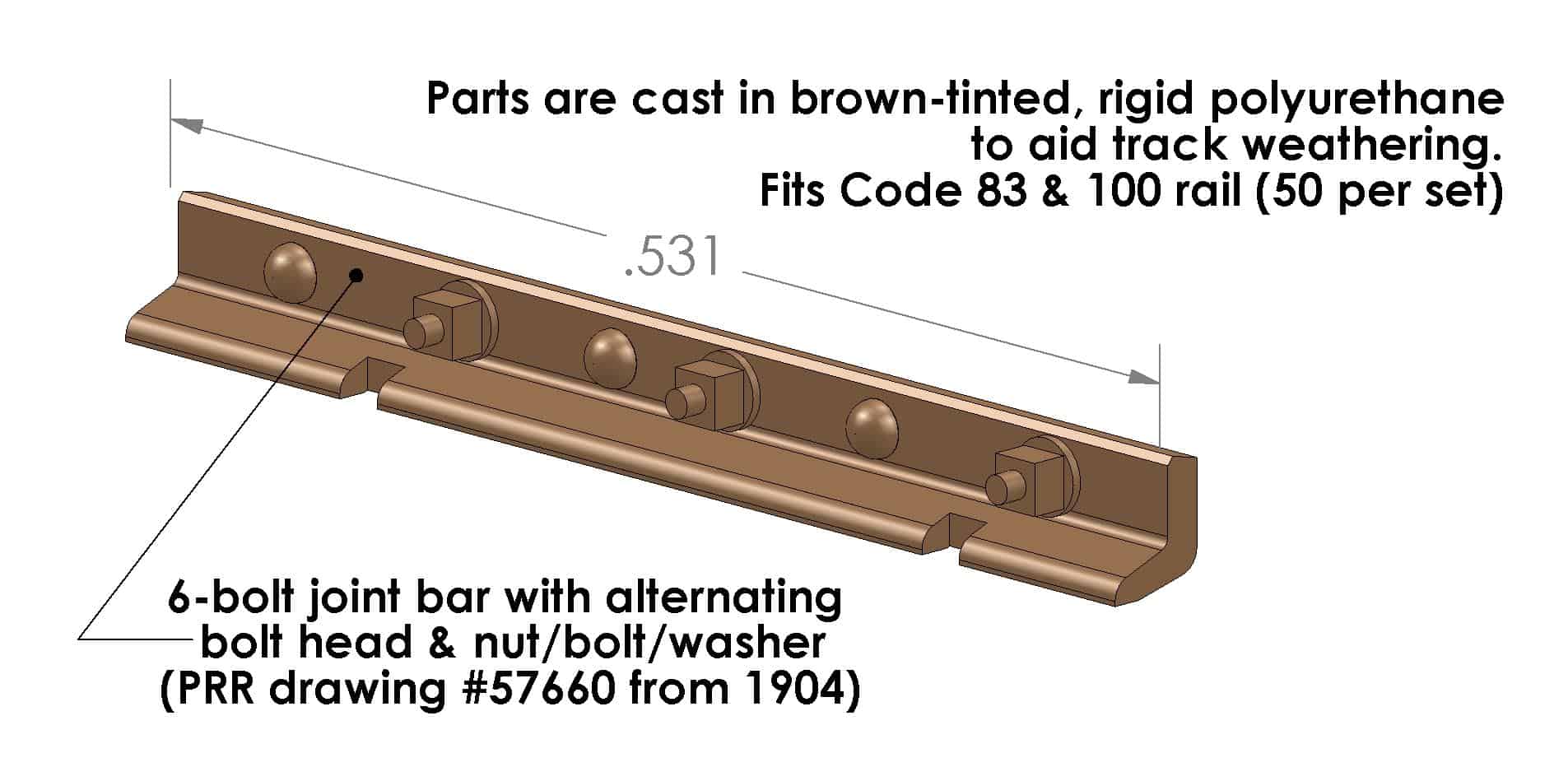

JOINT BARS (Code 83 &100)
All parts cast in brown-tinted, rigid polyurethane to aid with track weathering.

64-TD-20 ... 4-bolt bar, 50 pcs. ... $7.00
64-TD-21 ... 4-bolt bar, 100 pcs. ... $12.00

64-TD-25 ... 6-bolt bar, 50 pcs. ... $7.00
64-TD-26 ... 6-bolt bar, 100 pcs. ... $12.00
BETHLEHEM 53A & 53B SWITCH STAND KITS
The 53A throw bar is etched NS; the base and counterweight are separate urethane castings.  Separate pieces allow you to position the arm on each side.  The 53B is a single piece (bar cannot be repositioned).  Add wire, an eccentric crank and targets of your choice, a little black paint and you have a "functional" switch stand.

"Functional" means you can link the targets to switch throw bar (using parts provided in each kit) to allow targets to rotate 90 degrees.

Switch stands
DO NOT operate your switch ... they are operated BY your switch if you connect the throwbar to the cast urethane link.

Targets require
** NO PAINTING ** ... they are cast in red- and white-tinted urethane.  Base & target spindle (wire) require painting.

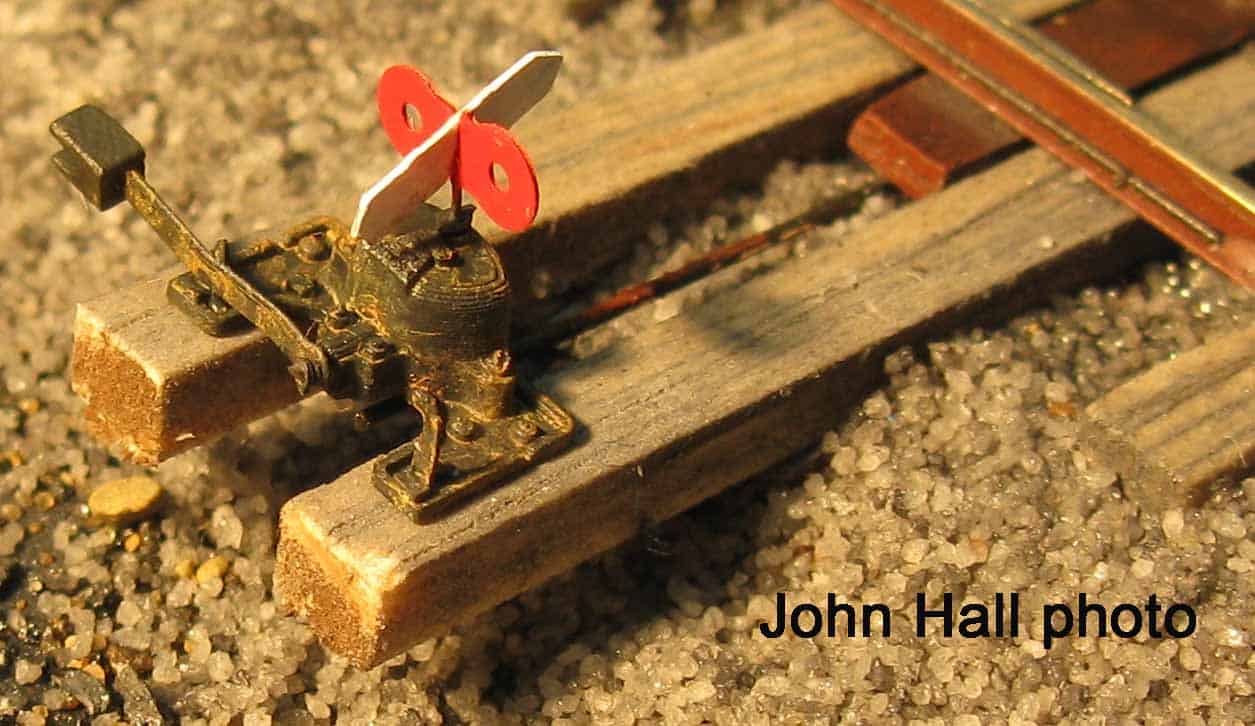

53A is low-profile & includes (5) target styles
53B is "intermediate" height & includes (4) target styles

64-TD-1.1 ... 53A, single kit w/ instructions ... $6.50
64-TD-1.3 ... 53A, 3-pack w/ instructions ... $17.50

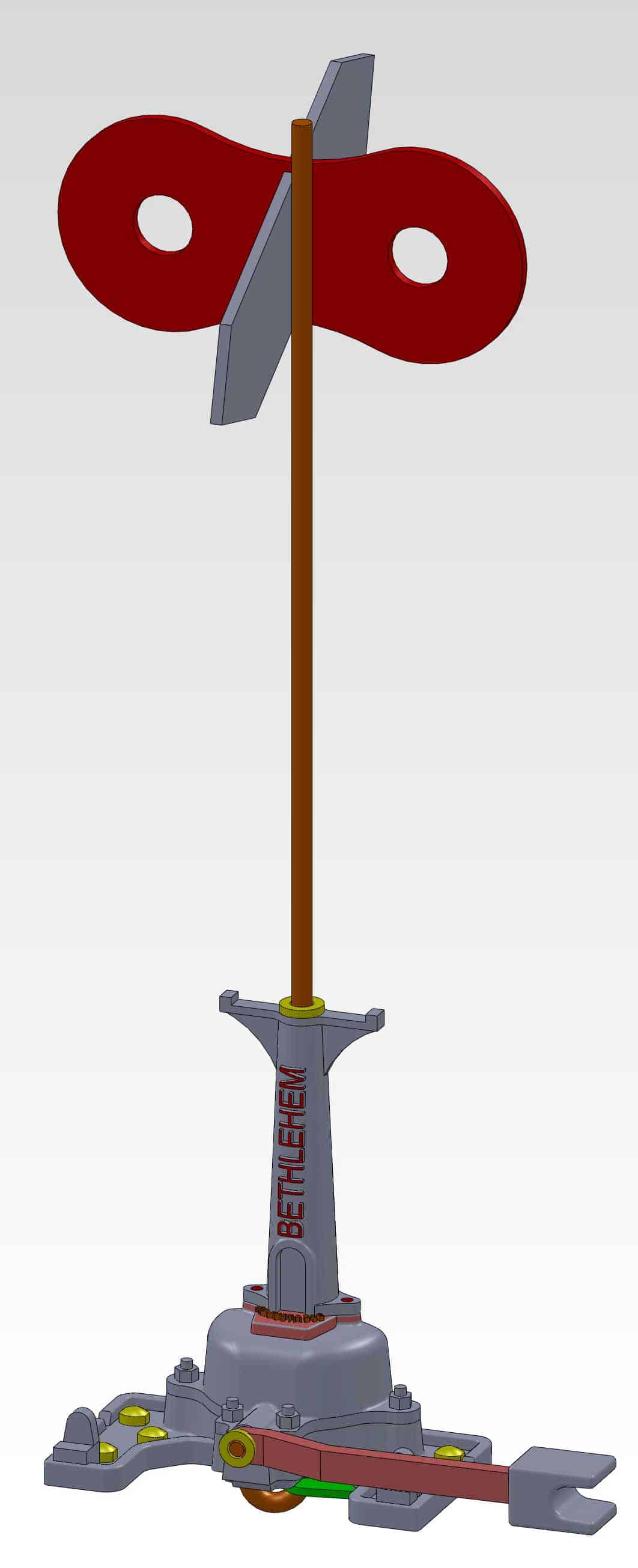

64-TD-2.1 ... 53B - RIGHT SIDE ARM, single kit w/ instructions ... $8.00
64-TD-2.3 ... 53B, 3-pack w/ instructions ... $22.00

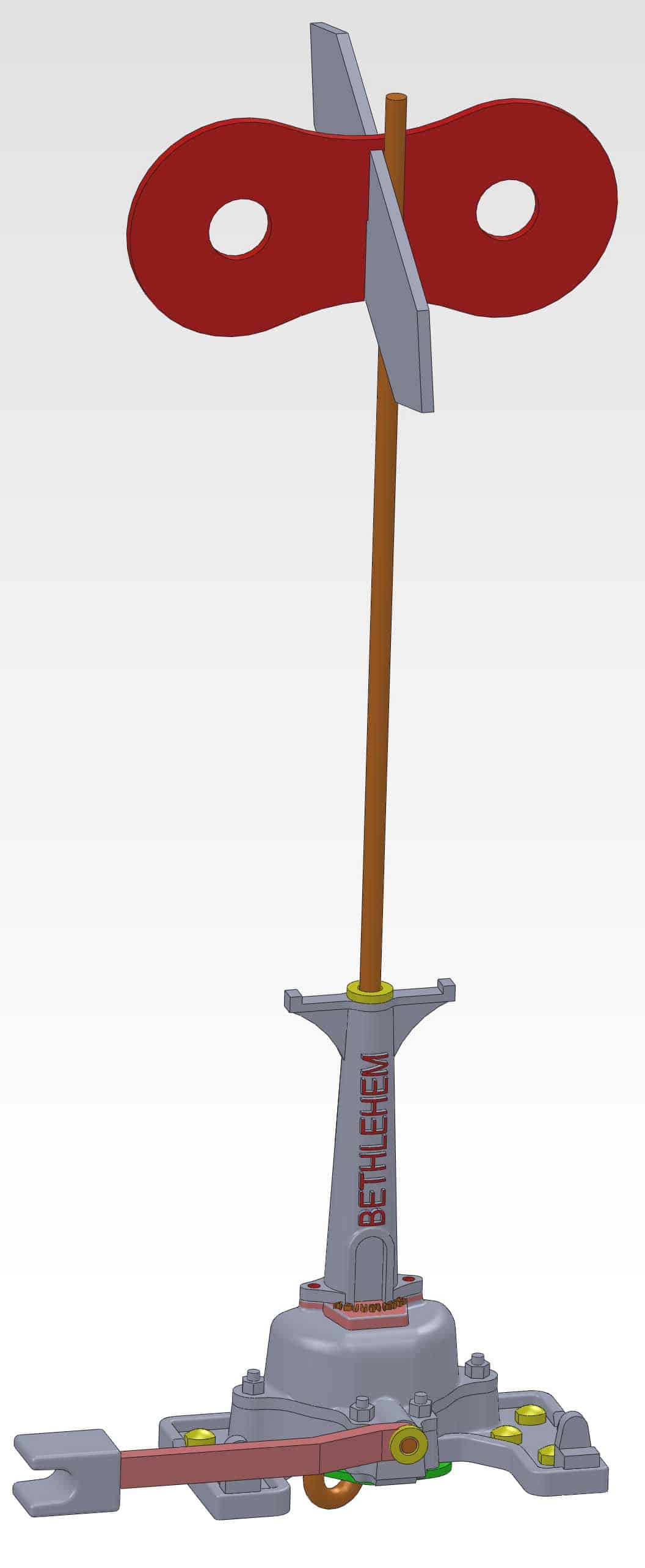

64-TD-3.1 ... 53B - same as above but with LEFT SIDE ARM ... $8.00
64-TD-3.3 ... 53B, 3-pk, same as above but with LEFT SIDE ARM ... $22.00
TRACK GAUGES
If you're hand-laying track, you need a gauge to suppliment the NASG stamped metal version.

These gauges are designed for code 70/83 and 100 Micro Engineering rail.  Inner "tab" also measures flangeway width of guardrails (bridges, crossing, switches).

Cast in durable, grey-tinted urethane.

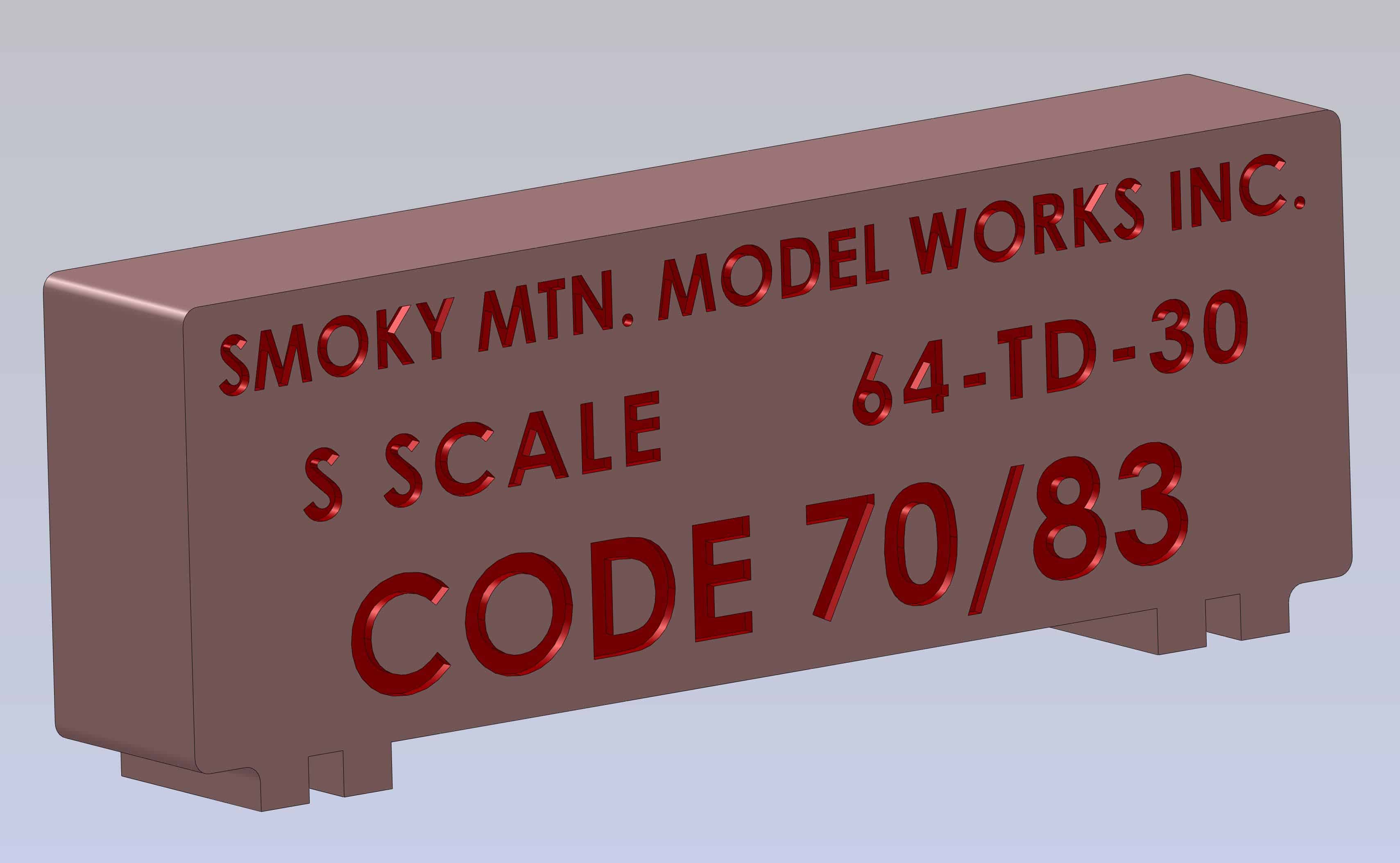

64-TD-30 ... Code 70/83 ... $7.00

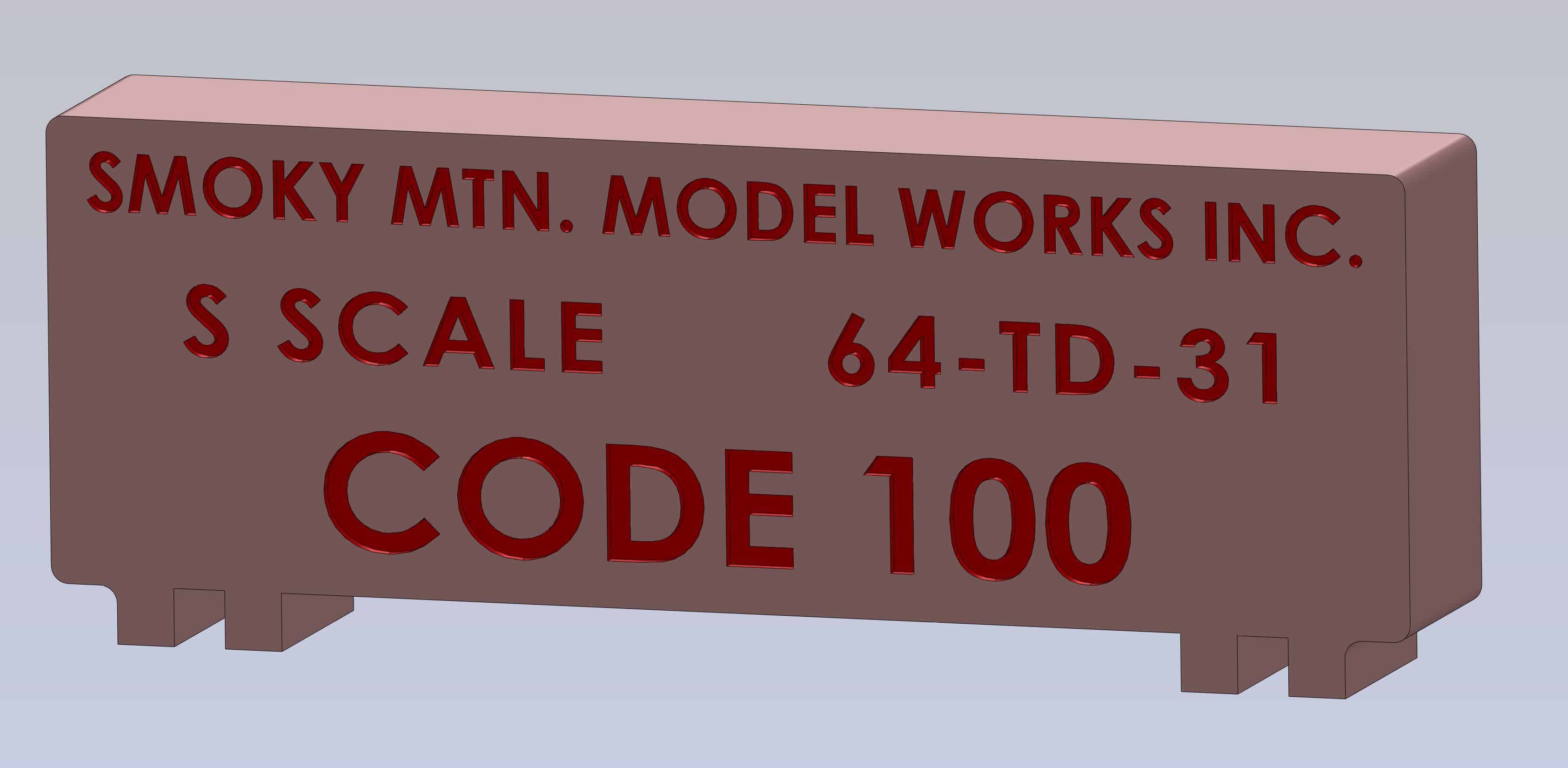

64-TD-31 ... Code 100 ... $7.00
