SWITCH STAND KITS (S and O Scales)

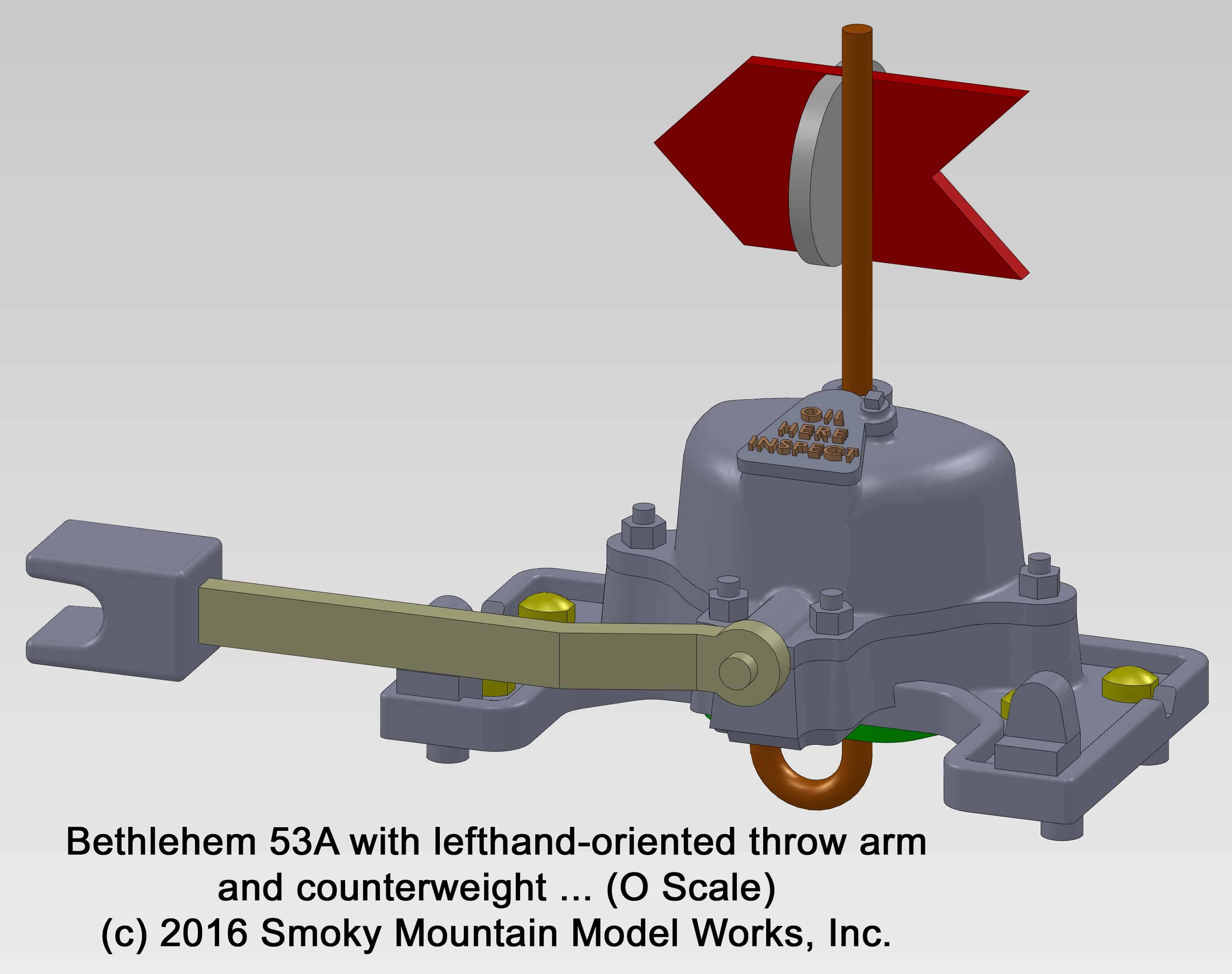

The Bethlehem 53A and 53B kits consist of a single, 3D printed body, throw arm and counterweight PLUS white- and red-tinted urethane targets and Phosphor Bronze wire to create the target spindle and connection to switch point.
NOTE (except 64-TD-1.1 and -1.3): throw arm and counterweight are available in LEFT HAND and RIGHT HAND orientation; they cannot be repositioned and do not operate. These are "functional" details, meaning you can link the targets to switch points to allow targets to rotate 90 degrees.
Switch stands DO NOT operate your switch ... they are operated BY your switch if you connect the switch points to the cast urethane link. Targets require NO PAINTING ... they are cast in white- and red-tinted urethane. Base & target spindle (wire) require painting.

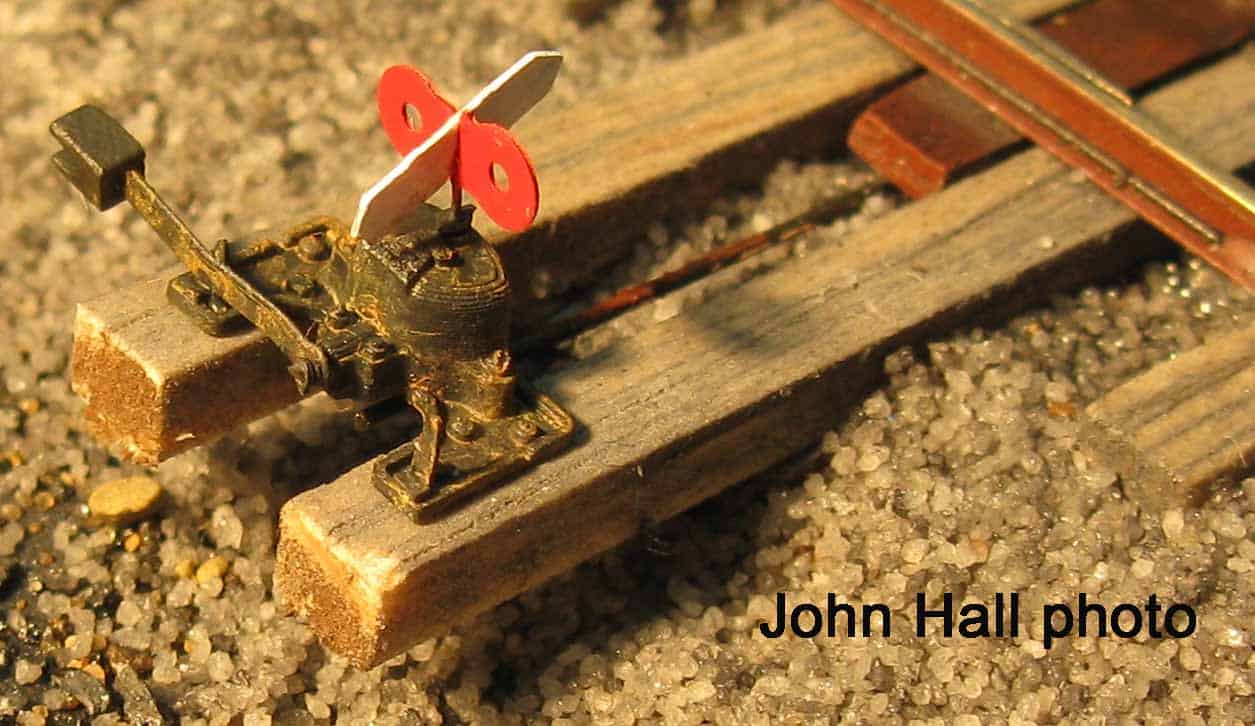

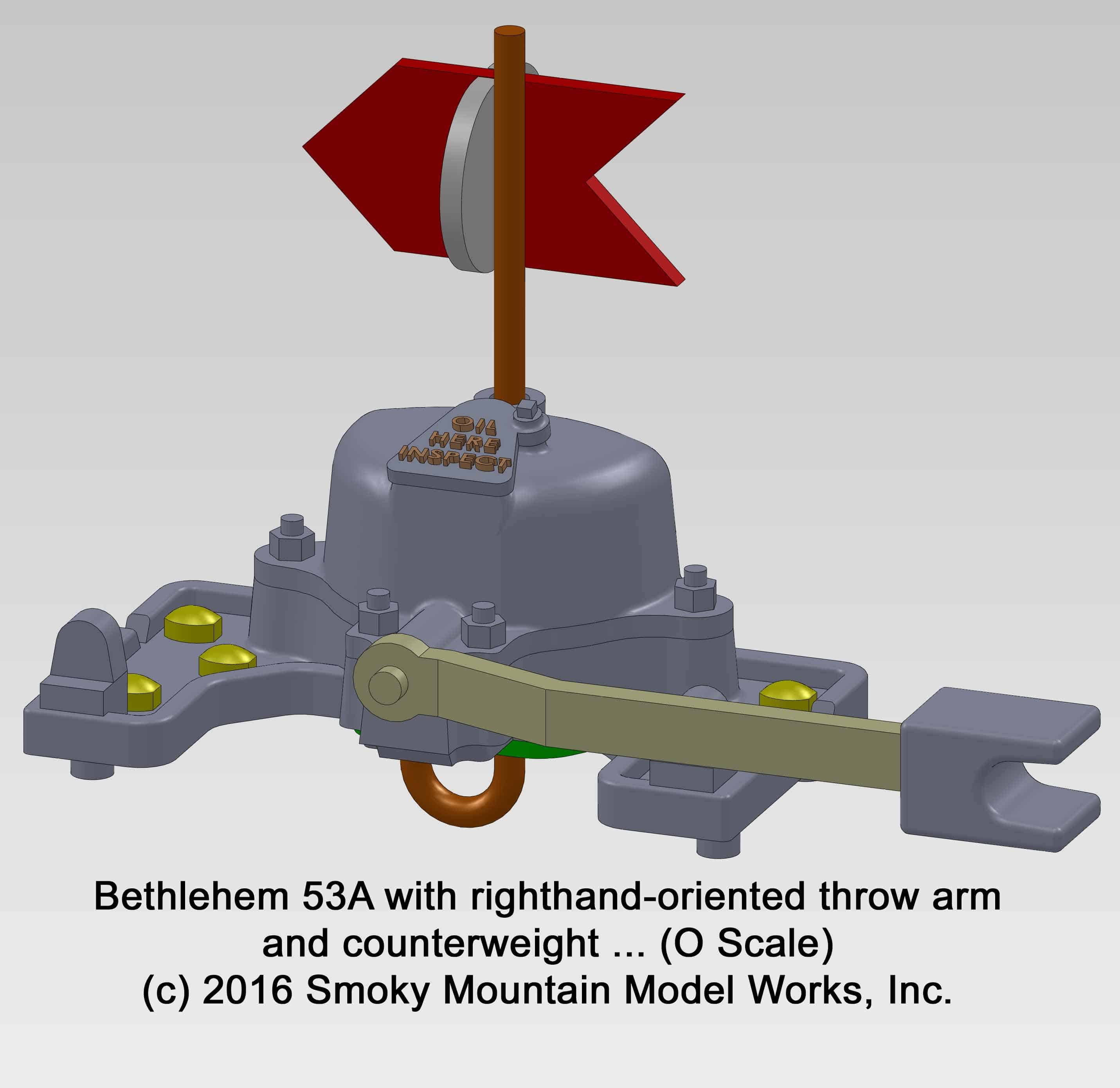

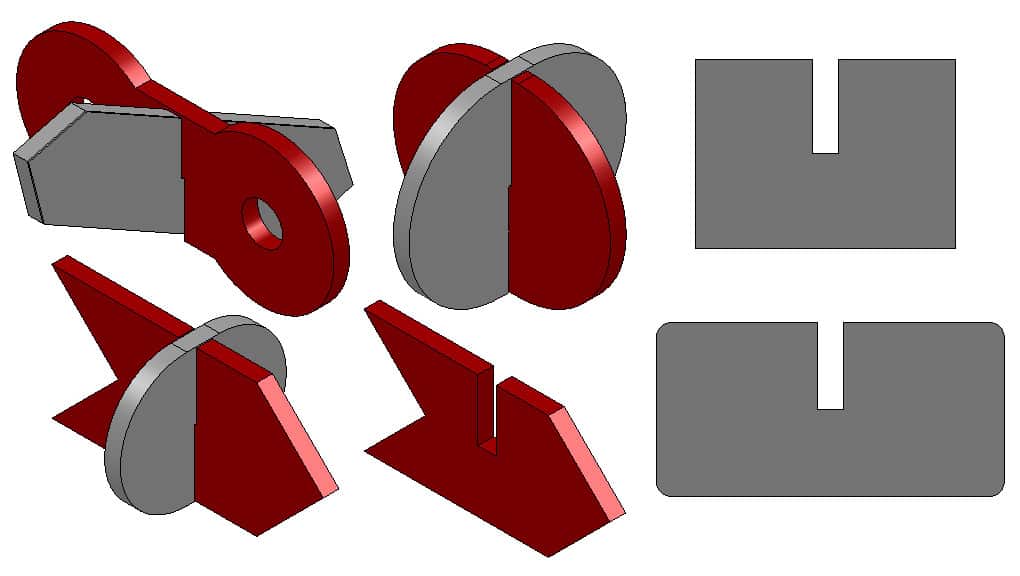

53A (low-profile) includes (5) target styles & instructions

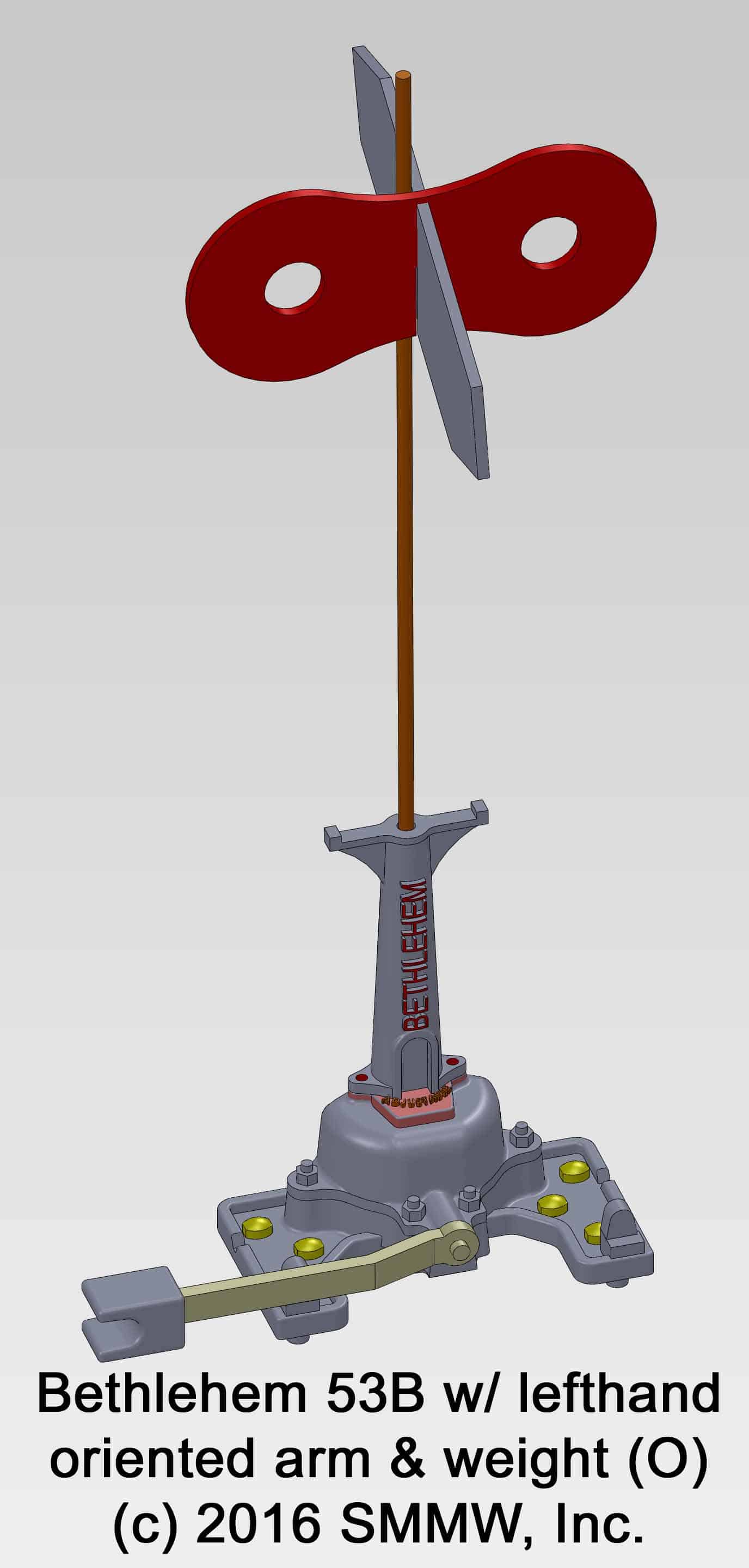

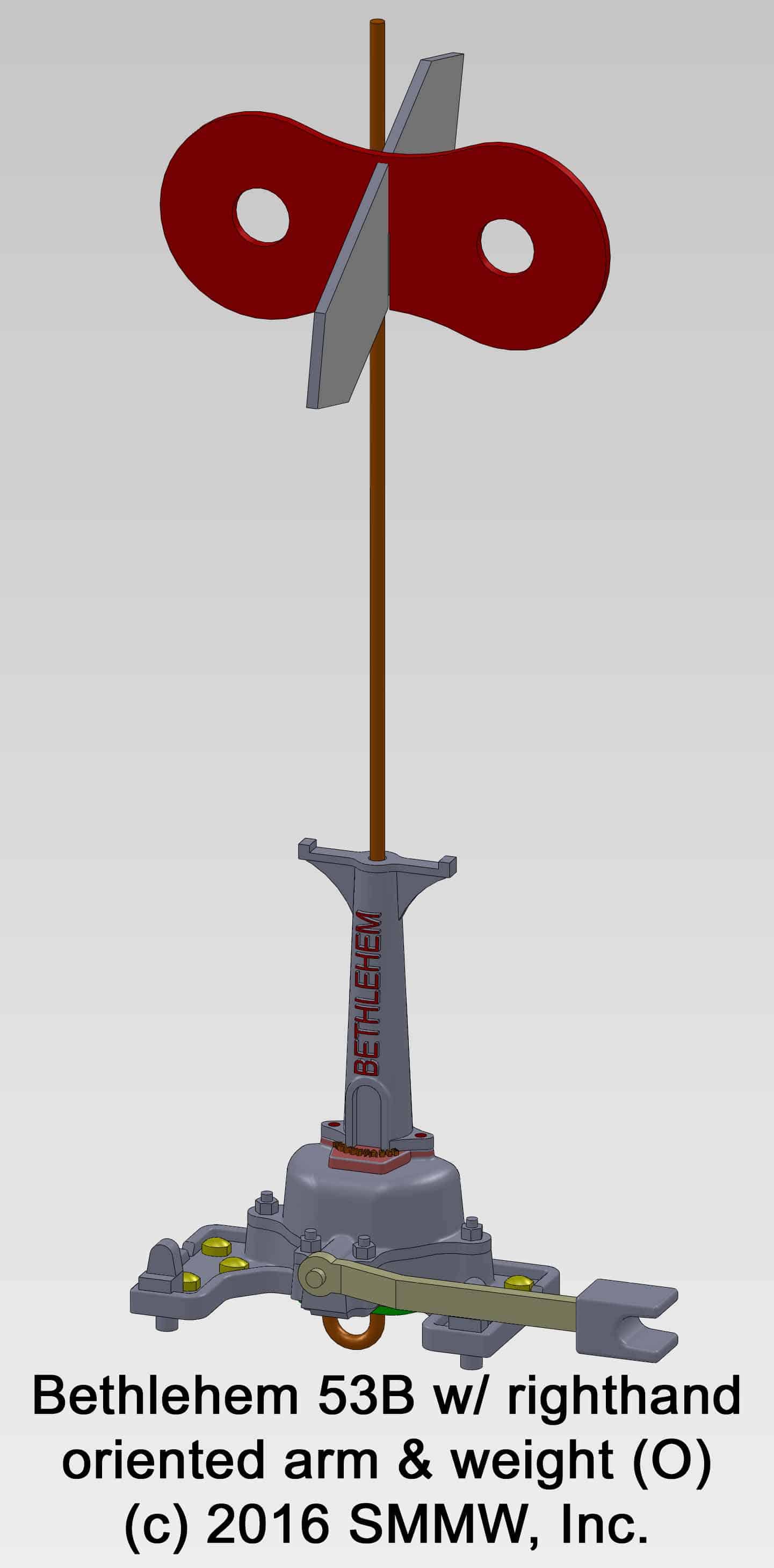

53B (intermediate height) includes (4) target styles & instructions
** S Scale **
64-TD-1.1 ... 53A ... POSITIONABLE THROW ARM ... $6.50
64-TD-1.3 ... 53A ... 3-pack ... $17.50
(These parts are cast urethane with separate photo-etched
throw arm that can be position left- or right-hand.)
64-TD-2.1-LH ... 53B ... LEFT HAND ARM ... $6.50
64-TD-2.3-LH ... 53B ... 3-pack ... $17.50
64-TD-2.1-RH ... 53B ... RIGHT HAND ARM ... $6.50
64-TD-2.3-RH ... 53B ... 3-pack ... $17.50
** O Scale **
48-TD-1.1-LH ... 53A ... LEFT HAND ARM ... $8.00
48-TD-1.3-LH ... 53A ... 3-pack ... $21.00
48-TD-1.1-RH ... 53A ... RIGHT HAND ARM ... $8.00
48-TD-1.3-RH ... 53A ... 3-pack ... $21.00
48-TD-2.1-LH ... 53B ... LEFT HAND ARM ... $9.50
48-TD-2.3-LH ... 53B ... 3-pack ... $25.00
48-TD-2.1-RH ... 53B ... RIGHT HAND ARM ... $9.50
48-TD-2.3-RH ... 53B ... 3-pack ... $25.00
The Bethlehem 53A and 53B kits consist of a single, 3D printed body, throw arm and counterweight PLUS white- and red-tinted urethane targets and Phosphor Bronze wire to create the target spindle and connection to switch point.
NOTE (except 64-TD-1.1 and -1.3): throw arm and counterweight are available in LEFT HAND and RIGHT HAND orientation; they cannot be repositioned and do not operate. These are "functional" details, meaning you can link the targets to switch points to allow targets to rotate 90 degrees.
Switch stands DO NOT operate your switch ... they are operated BY your switch if you connect the switch points to the cast urethane link. Targets require NO PAINTING ... they are cast in white- and red-tinted urethane. Base & target spindle (wire) require painting.
53A (low-profile) includes (5) target styles & instructions
53B (intermediate height) includes (4) target styles & instructions
** S Scale **
64-TD-1.1 ... 53A ... POSITIONABLE THROW ARM ... $6.50
64-TD-1.3 ... 53A ... 3-pack ... $17.50
(These parts are cast urethane with separate photo-etched
throw arm that can be position left- or right-hand.)
64-TD-2.1-LH ... 53B ... LEFT HAND ARM ... $6.50
64-TD-2.3-LH ... 53B ... 3-pack ... $17.50
64-TD-2.1-RH ... 53B ... RIGHT HAND ARM ... $6.50
64-TD-2.3-RH ... 53B ... 3-pack ... $17.50
** O Scale **
48-TD-1.1-LH ... 53A ... LEFT HAND ARM ... $8.00
48-TD-1.3-LH ... 53A ... 3-pack ... $21.00
48-TD-1.1-RH ... 53A ... RIGHT HAND ARM ... $8.00
48-TD-1.3-RH ... 53A ... 3-pack ... $21.00
48-TD-2.1-LH ... 53B ... LEFT HAND ARM ... $9.50
48-TD-2.3-LH ... 53B ... 3-pack ... $25.00
48-TD-2.1-RH ... 53B ... RIGHT HAND ARM ... $9.50
48-TD-2.3-RH ... 53B ... 3-pack ... $25.00
Smoky Mountain Model Works, Inc.
Asheville, North Carolina • USA
Asheville, North Carolina • USA
Creating 20th Century Models Using 21st Century Technology
Smoky Mountain Model Works, Inc. • 35 Springwood Drive • Asheville, NC 28805
Ph.: (828) 777-5619 (10-5 M-F) • Email: jimking3@charter.net
Ph.: (828) 777-5619 (10-5 M-F) • Email: jimking3@charter.net
Each item is designed in Solidworks 3D CAD. Urethane casting patterns are made using Rapid Prototyping and/or 3D Printing technology.
PHONE BOX KITS

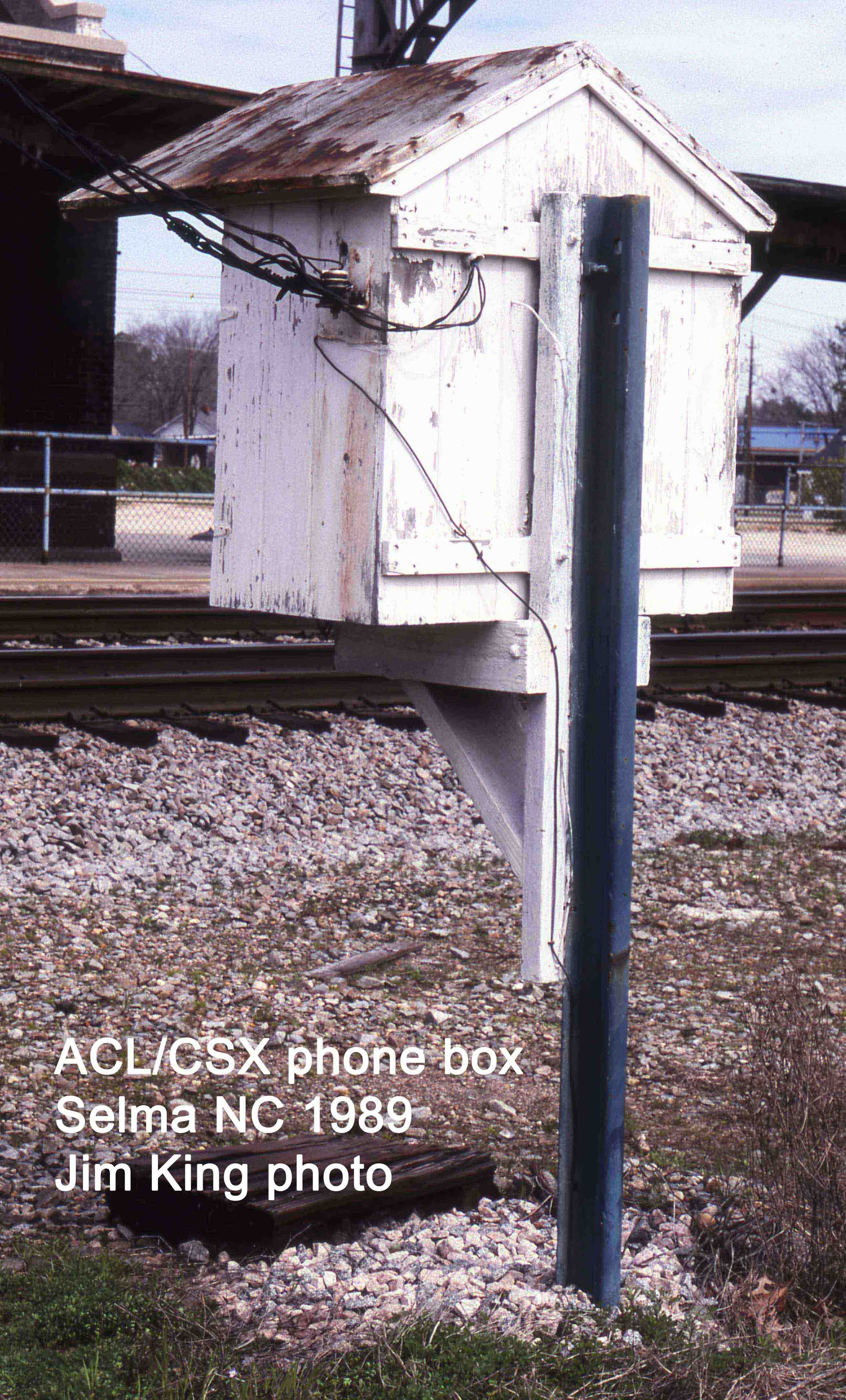

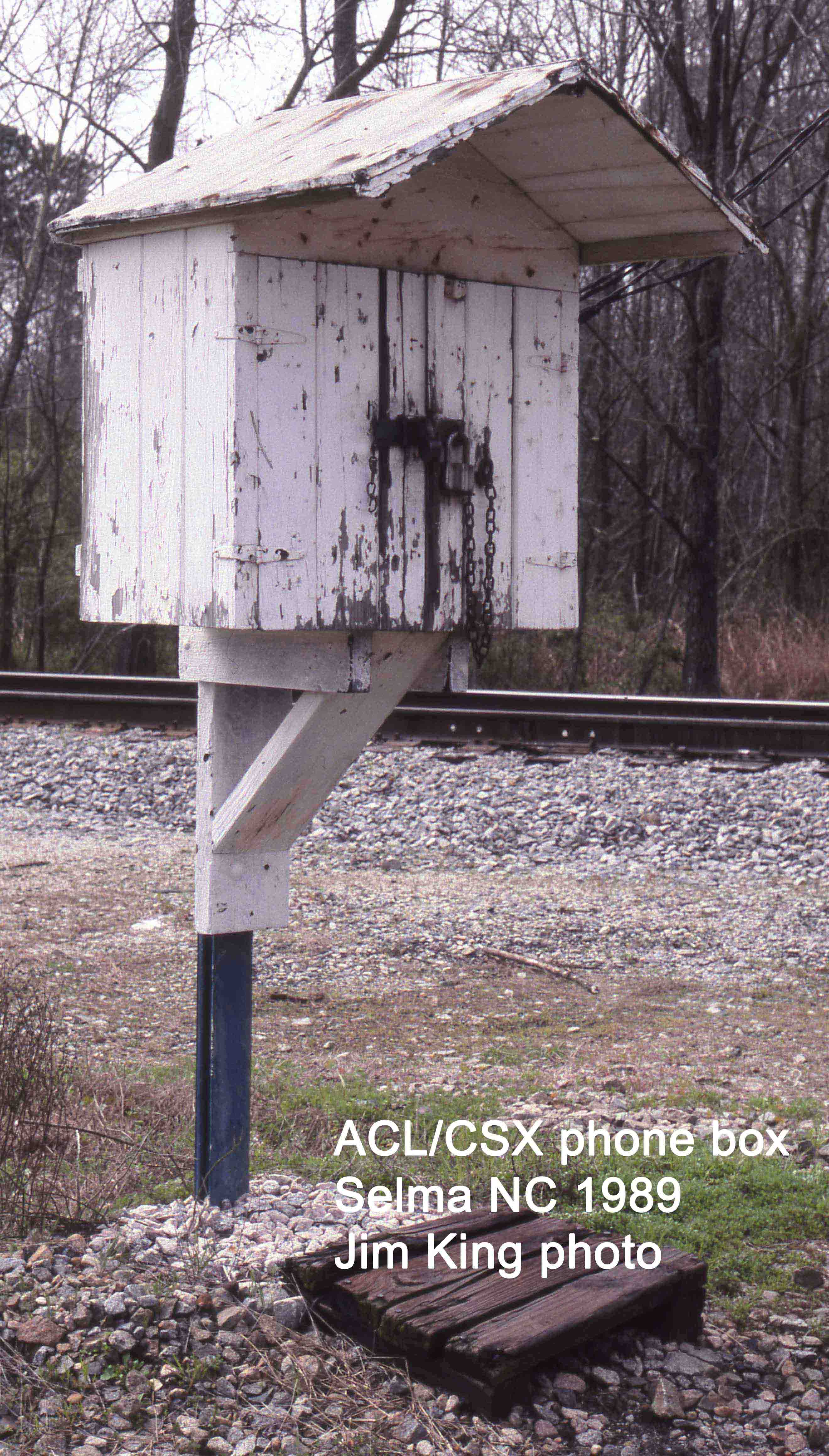

The phone box, also named "call box", was a key ingredient in the communication system between crews and dispatchers/operators. A box would be "planted" on posts or bolted to phone poles in strategic locations, such as diamonds, branchline junctions, interchanges and congested areas. Remote areas with few depots also used these. They were EVERYWHERE!
Each kit includes a 3D printed body with all braces, a 2-pc cast urethane roof and 1/2" length of blackened chain. The post is not included but can easily be modeled with a short length of Code 70 rail or glue to a telephone pole.
64-TD-40 ... $9.95
The phone box, also named "call box", was a key ingredient in the communication system between crews and dispatchers/operators. A box would be "planted" on posts or bolted to phone poles in strategic locations, such as diamonds, branchline junctions, interchanges and congested areas. Remote areas with few depots also used these. They were EVERYWHERE!
Each kit includes a 3D printed body with all braces, a 2-pc cast urethane roof and 1/2" length of blackened chain. The post is not included but can easily be modeled with a short length of Code 70 rail or glue to a telephone pole.
64-TD-40 ... $9.95
